GENSS
Tactical Radio Redefined
A New Era for Tactical Communications
GENSS is the vanguard of tactical radio communications.
A groundbreaking radio, GENSS is poised to revolutionise the field with its innovative core framework and software-defined flexibility. GENSS symbolises the next generation in communication technology, merging multi-mission and multi-mode functionalities to assure robust battlefield connectivity.
Designed with the soldier in mind, GENSS is set to redefine the battlefield communications landscape. Its utility is vast, and its unique ability to integrate into any existing communications network is unparalleled.
Features & Benefits
- Agility in Design

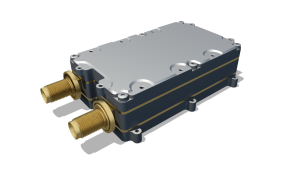

- – Flexible Deployment: Dual integrated PCBAs within a core module.
– Adaptation into various platforms and base band architectures.
– Spectrum Efficiency: Incorporates a software-defined radio (SDR) and a RF focused Front End Module optimised for spectrum efficiency. - Flexibility
- – Initial L-Band/LTAC capability with a dual channel SDR spanning 29MHz to 6GHz.
– Offers 40 MHz immediate bandwidth for diverse bearer solutions, spectrum bands, and waveforms. - Accessibility
- – Seamless audio and data integration with a Remote Interface Unit (RIU) including a USB hub
– Streamlined operation with simplified control and configuration. - Extended Capability
- – Up to 300% increase in Data throughput, achieving 90kbps @25kHz / 900kbps@200kHz LTAC.
– Very narrowband 5kHz channels enable voice and data throughput @ 12.5kHz. - Adaptability
- – Optimal bandwidth efficiencies on the move with integrated and automatic Adaptive Coding and Modulation (ACM).
– Ensure communication even in ‘noise’ through advanced coding and modulation schemes. - Robustness
- – Encryption and strong access controls compliant with UK Govt Secure by Design standards.
– Traffic encryption with AES 256 or 128 options to suit different export markets.
– Built to Mil Std 810G with embedded ATC for interference filtering, enabling communication despite terrestrial interference.
Applications
- Beyond Line of Sight LTAC/TACSAT
- Provides standalone voice and data functionality either at low data rates (with low probability of intercept and detection) or high data rates enabling 90kbps data throughput on a single 25kHz data channel.
- Tactical MANET data networks
- MANET data networks are currently limited to their respective ‘MESH’. GENSS can extend each ‘MESH’ to the echelon/home base station using its open API platform, boosting data throughput with embedded management software applications.
- LTE
- The GENSS+ data port can utilise data extension capabilities beyond terrestrial networks, like LTE, and retransmit them over personal or tactical Satellite solutions. With GENSS multiband SDR and FPGA, future requirements might enable a direct rebroadcast between LTE and LTAC solutions, using a single radio.
- Link 16
- GENSS agile hardware solutions easily integrate into all operational platforms and enable interoperable BLOS connectivity for Link 16 users. Using GENSS user-friendly OPEN software architecture, many Link 16 applications achieve seamless connectivity, including application interoperability like ATAK, Windows, or IOT.
- Tropo
- TROPOSCATTER solutions provide a bespoke high-bandwidth point to point capability. Data from these Spectra provided COMTECH solutions can be integrated into GENSS and distributed to non TROPO stations.
- APN
- The core of GENSS solutions consists of an SDR and FEM. These units can be integrated into base band/rack mounted solutions in Satellite Ground stations to expand the network over terrestrial solutions or other satellite services.
GENSS Sub Heading
- Engineered for Excellence
-
GENSS is the brainchild of leading British communications engineers. With military precision, it has been designed and developed to redefine the essence of tactical radios:
- Adaptive Core: A modular hardware radio system that conforms to varied user roles through simple software reprogramming.
- Broad Spectrum: Operates across HF, VHF, UHF, and satellite bands (L-Ku) to meet all communication needs.
- Secure and Capacious: A high-capacity design equipped to handle Beyond Line-of-Sight (BLOS) and Communications on the Move (COTM) with agility and security.
- All-Terrain Versatility: Ensures seamless voice and high-bandwidth data transmission on Land, Sea, and Air.
- Pioneering Integration
-
GENSS excels in connectivity:
- MANET Data Solutions: Extend data reach and enhance rapid management applications.
- Strategic Updates: Delivers timely tactical updates to command locations, ensuring a decisive edge in strategic operations.
Design Intelligence Sub Heading
- Maximised Performance, Minimised Footprint
-
GENSS balances peak performance with efficiency:
- Compact Design: Delivers maximum functionality while minimising size, weight, and power consumption.
- Futureproof Build: Equipped with hardware designed to withstand the test of time and evolving combat scenarios.
- User-Centric Interface: Simple and intuitive programming ensures ease of use and quick adoption.
- Technological Advantage
-
The prowess of GENSS is unmatched, boasting:
- Enhanced Data Rates: Over 25kHz LTAC channels, with speeds scaling up to 90kbps.
- Intelligent Modulation: Adaptive waveforms that adjust to the tactical situation, whether on the move or stationary.
- Stealth Operations: Engineered to minimise detection in contested communication spaces.
