Tactical Operation Centre System (STOCS)
extending the range of tactical radio communications Beyond Line of Sight (BLOS) while maintaining Communications on the Move (COTM).
slingshot tactical operations centre system
SlingShot is a unique technology that enables in-service radios to work beyond line of sight, delivering a “battle-winning” advantage and simplified mission-planning.
In-service across the globe, SlingShot complements oversubscribed TACSAT. And, with flexible leases and dedicated beams, you can be confident of having command and control communications when and where you most need it.
The Ops Room
For SlingShot to operate successfully, it is essential that the antenna has Line of Sight (LOS) to the satellite. This is easily achieved on most vehicles or on the man.
In an ops room or command post scenario however, the antenna may need to be remoted away from the operating area in order to have gain clear LOS. This may be the on a roof of a building, the outside of a ship or simply further away from the command post location.

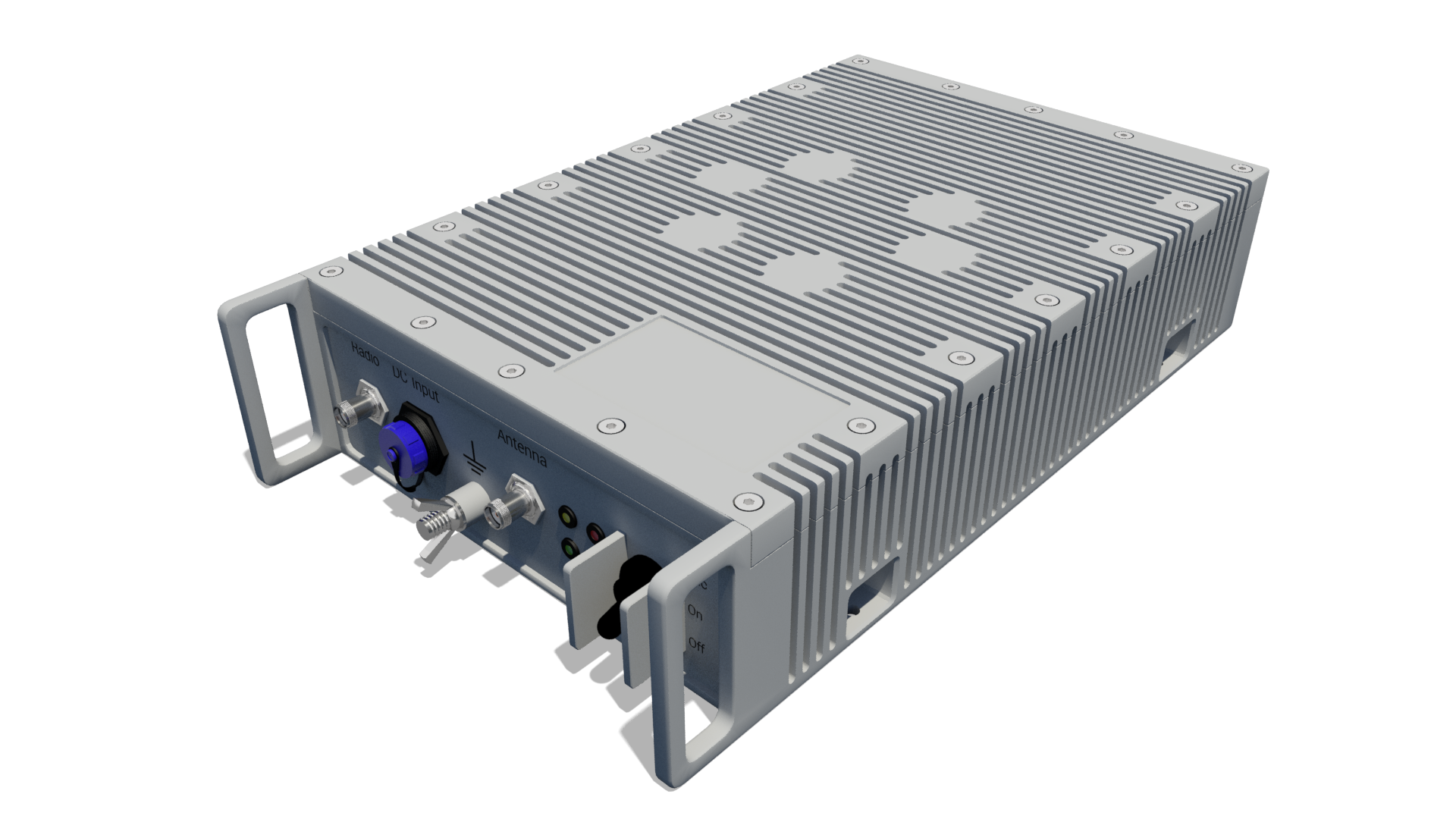

Because the Hub is IP67 rated it can be left in situ for extended periods.
Remote the antenna
STOCS was specially designed to allow the antenna to be remoted up to 35 metres from the radio, meaning that whilst the antenna is positioned to see the satellite, the user can operate the system in a more suitable, potentially safer location.
It is simple and easy to set-up and the ability to extend the antenna away from the radio gives more flexibility to the overall capability. STOCS would be beneficial in any scenario where an extended field of operation is needed, other examples are; where EMC screening is necessary, or in a position where an observation post is on a forward slope but the communications system needs to be on the reverse slope for cover.
What’s Included?
STOCS is available in both UHF and VHF Military and Commercial frequency versions.

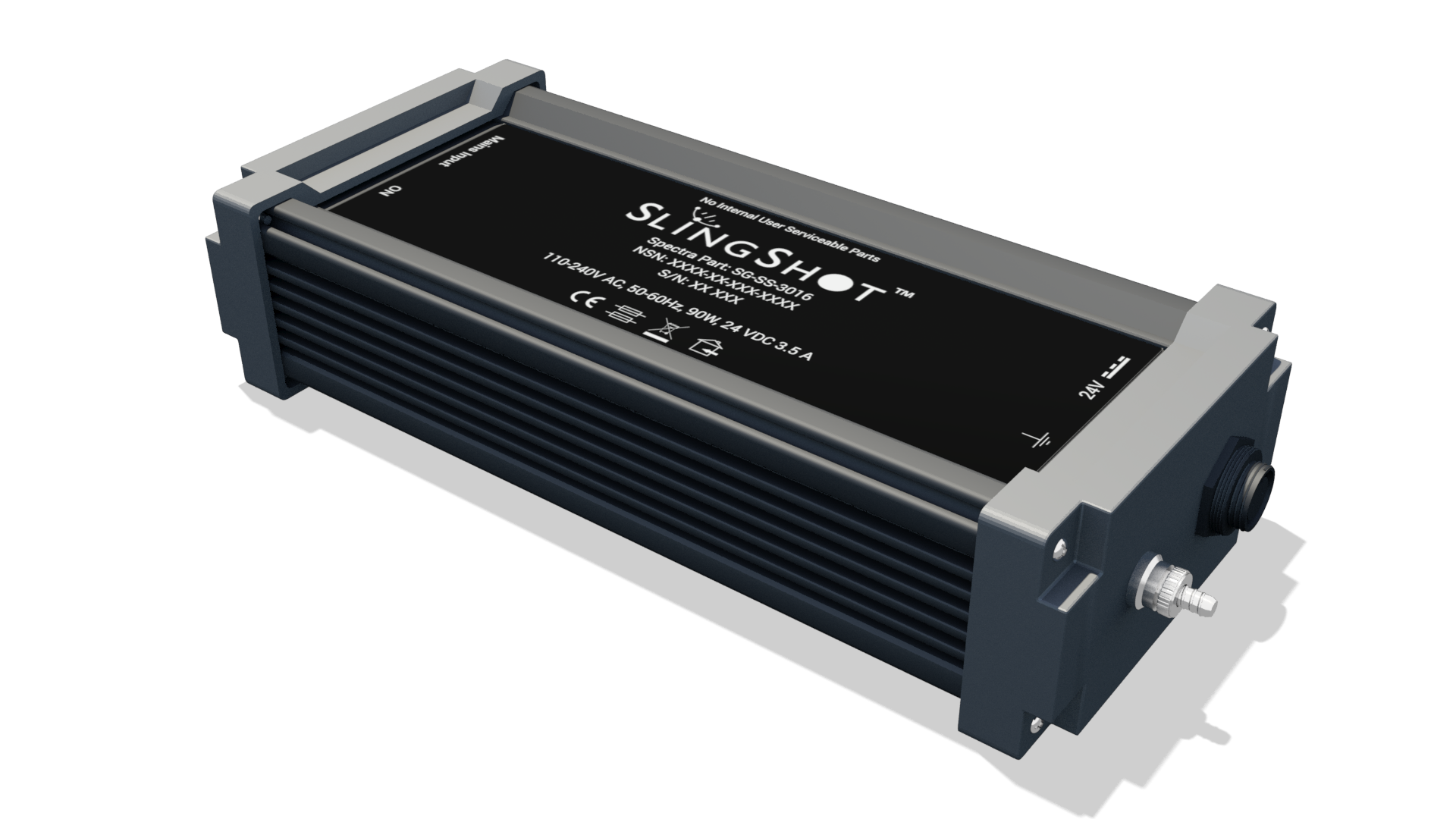

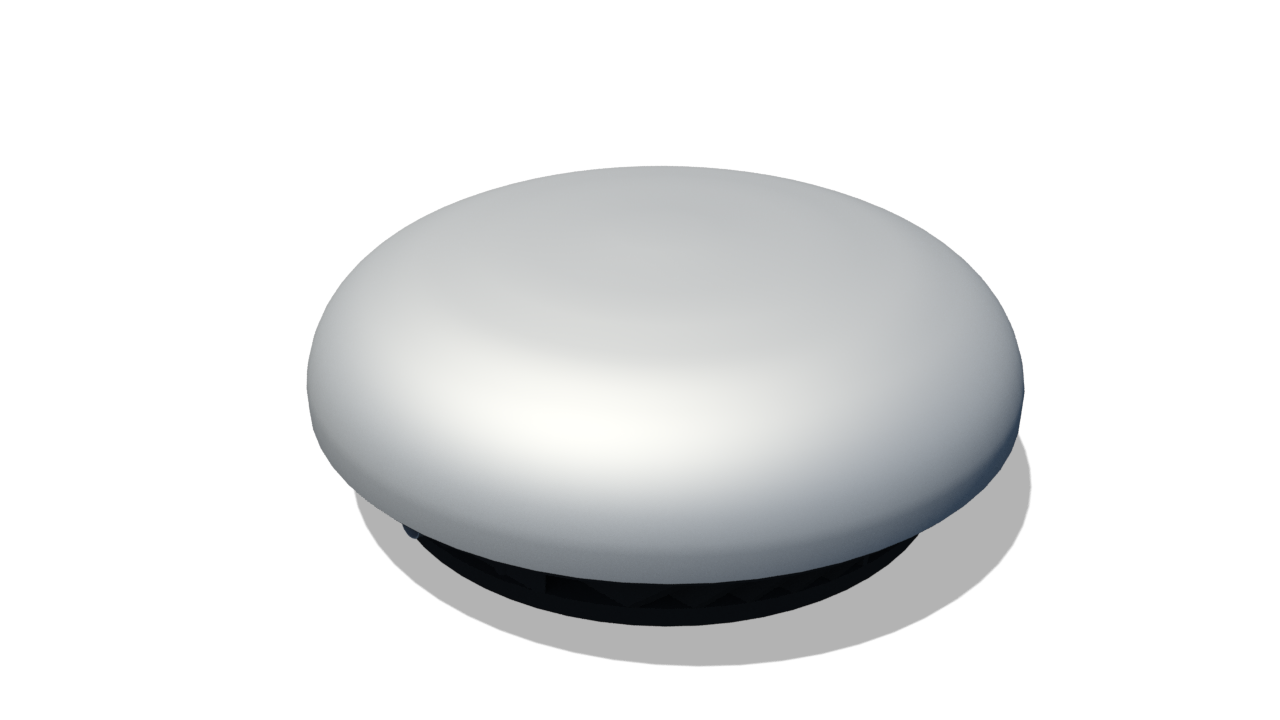

Systems consist of a Hub unit, an omnidirectional antenna, 2-metre and 0.15-metre antenna coaxes, a cable reel with 35 metres of RF and power cable, an earth cable and an AC/DC mains power converter.
WATCH
A quick dramatisation of how SlingShot enables BLOS COTM (beyond line of sight communications on the move) using in-service tactical radios, on all platforms.
Get In Touch
For more information on Spectra Group’s Slingshot products please contact our team:
- Tel: +44(0)845 260 0444
- Fax: +44(0)845 260 0445
- Email: enquiries@spectra-group.co.uk
Alternatively, complete our enquiry form and we will get back to you shortly. You can also download the Slingshot brochure to find out more about the Slingshot product systems and uses.
